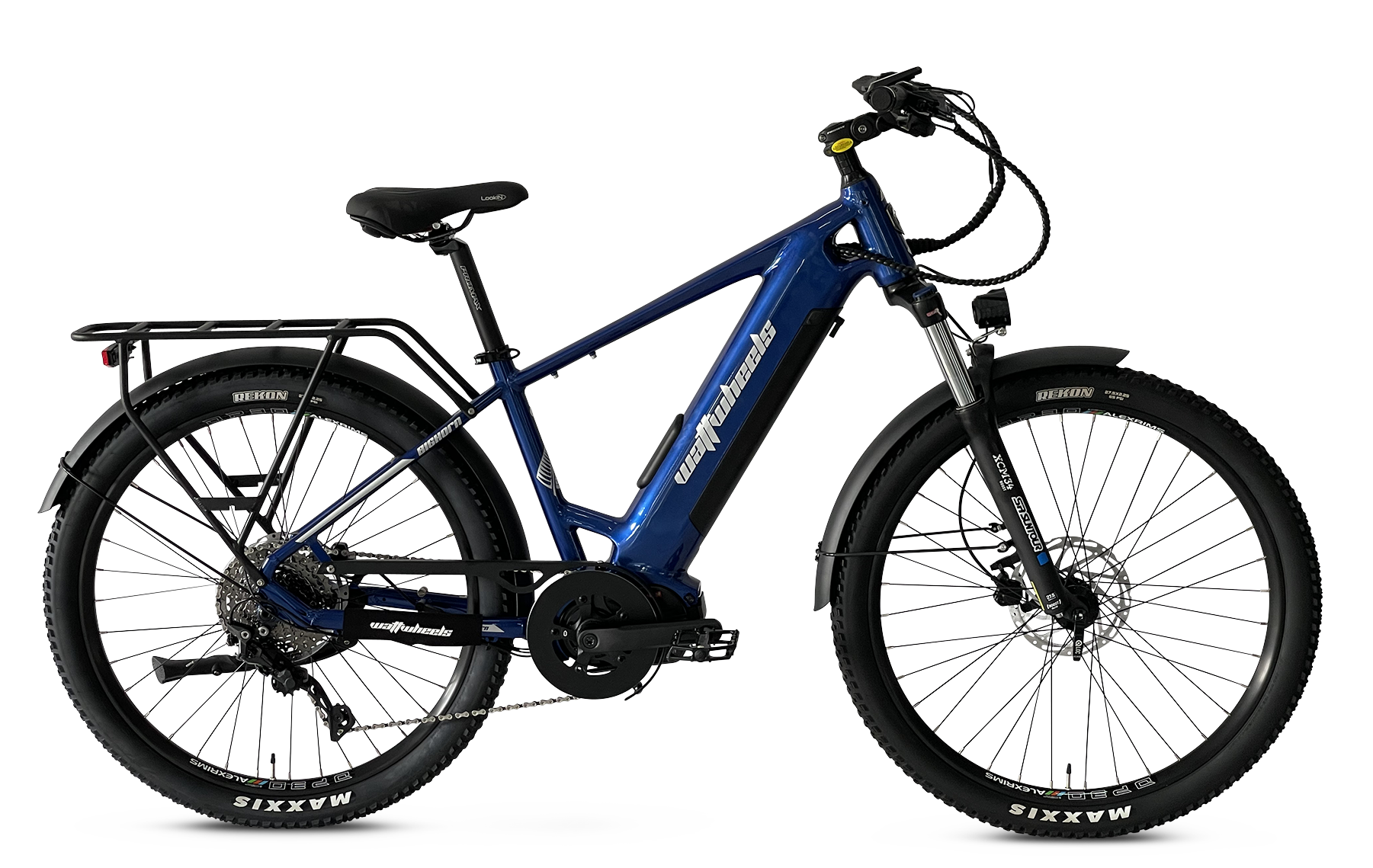

Bighorn S V4

$4,999.00

Please note we will direct all sales to your closest retailer. If we do not have someone in your area please contact us and we will arrange a qualified bike technician to assemble for you.

Find Stockists

Features

Retaining its signature top tube frame and available in three sizes, the Bighorn boasts the same sleek downtube which houses a large 720Wh capacity battery, featuring the latest Samsung 21700 cells for extended power and endurance.

Now, with the groundbreaking addition of smart technology, the Bighorn offers unparalleled connectivity through its integrated SIM module, running on the 4G network. Paired with the new Wattwheels app, users can access a range of features including bike diagnostics, theft reporting, and real-time tracking, with more innovations on the horizon.

  • Real-time GPS Location: With a 4G SIM card, track your bike's whereabouts anytime, anywhere.
  • Geo-fencing: Receive instant alerts if your bike is moved outside designated boundaries.
  • Report Stolen Bike: In the unfortunate event of theft, report your bike stolen directly through the app, triggering security measures and shutting down the bike.
  • Dealer Locator: Easily locate and connect with authorized Wattwheels dealers for support and service.
  • Remote Bike Control: Take command of your eBike's features remotely—toggle lights, and adjust PAS, all at your fingertips.
  • Remote Diagnosis: Diagnose and troubleshoot any issues seamlessly through the app, ensuring your ride is always in peak condition.

The app is included for the first year in the price of the bike but after that, it must be renewed yearly at a cost of $59.95 per year. Of course, if you don't want to use the app and just want to ride the bike you don't need to renew the app

THE APP WILL BE LIVE TO DOWNLOAD FROM THE GOOGLE PLAY/APPLE STORE FROM SEPT 1ST 2024. FOR INSTRUCTIONS AROUND THIS KEEP AN EYE ON OUR YOUTUBE CHANNEL AND WAIT FOR THE VIDEO TO BE UPLOADED - WATTWHEELS YOUTUBE

(Note - You can not upgrade to the app software with older bighorn models, unfortunately)

Powered by the renowned Ananda M100 motor, delivering whisper-quiet operation and an impressive 120N.m of torque, conquering the steepest climbs is effortless. Coupled with the dependable 10-speed Shimano Deore drivetrain and Shimano hydraulic brakes, the Bighorn ensures a confident and smooth ride from start to finish.

Complete with essential accessories including mudguards, rear rack, front and rear lights, and now featuring color displays with integrated USB ports for convenient device charging, the Bighorn offers unparalleled versatility and functionality.

Another addition to the 24 models is the option to add a front rack for extra storage +$99RRP

Whether tackling iconic New Zealand trails or navigating city streets, the Bighorn stands as the ultimate universal bike, offering both performance and practicality for every journey.



Specifications

Motor Ananda M100 300Watt Motor(120N.m Torque) - Canbus System
Battery 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) Smart BMS
Frame - 17-inch medium frame (27.5 Wheel)
- 19-inch large frame (29 Wheel)
- 21-inch X Large frame(29 Wheel)
Speed Up to 45km/h
Brakes Tektro Hydraulic 180mm Rotors
Derailleur Shimano Deore 10 Speed Linkglide
Cassette Shimano 11-43 LG400
Shifter Shimano Deore 10sp M5130
Crankset Ananda Isis 44T, 170mm
Display Ananda D16 Colour Display with USB charge port
Front Fork Suntour XCM34 with Lockout - 100mm Travel
Tyres Maxxis Ikon 27.5 *2.25(Med) 29*2.25 for Large & XL
Charger 48V3Ah Smart Charger
Seat Foam Velo  - Black
Smart Bike Yes - Runs an inbuilt sim module that can be paired with the Wattwheels App
Chain Shimano CN-LG500
Seat Post 31.60 Alloy
Hubs Sealed bearing
Rims Alexrims DP30 27.5 & 29 32H
Handlebar Promax 680mm, 31.8, 10mm Rise
Grips Velo 140mm Lock On
Hanger Sram UDH
Colour Misty Blue, Moroccan Red and Deep Sea Blue
Throttle Thumb Left hand (can be removed)
Net Weight (24kg without battery) (Battery + 3.5kg)
Warranty Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months on mechanical components
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 130 kg
